Filter Cages

Precision-Built Support Structures for Dust Collector Filter Bags

Overview

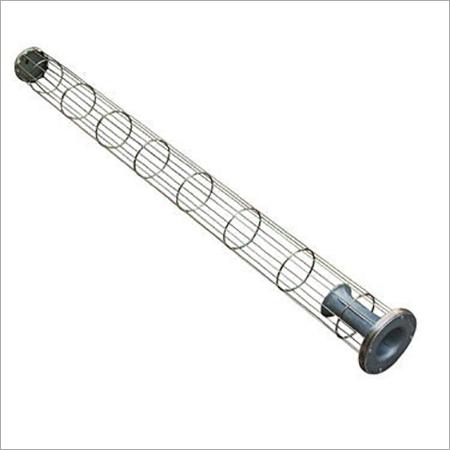

Filter cages are essential support structures used inside dust collector filter bags to prevent collapse during filtration and pulse cleaning. Made from mild steel, galvanized steel, or stainless steel, these cages ensure optimal airflow, effective bag cleaning, and extended bag life. Properly designed cages are critical for efficient dust collection and reduced emissions in industrial filtration systems.

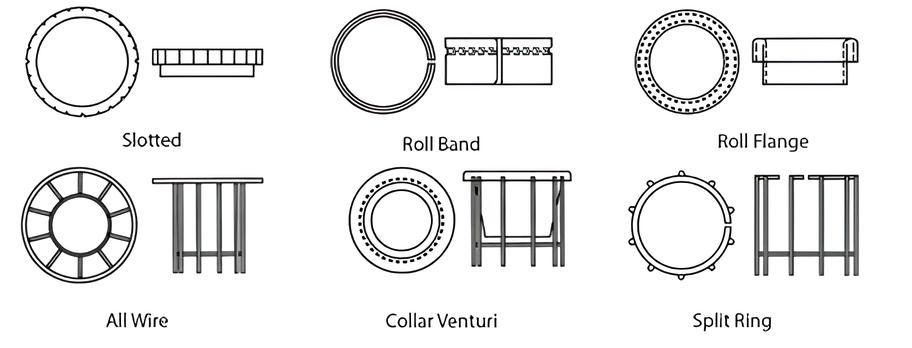

Cage Tops

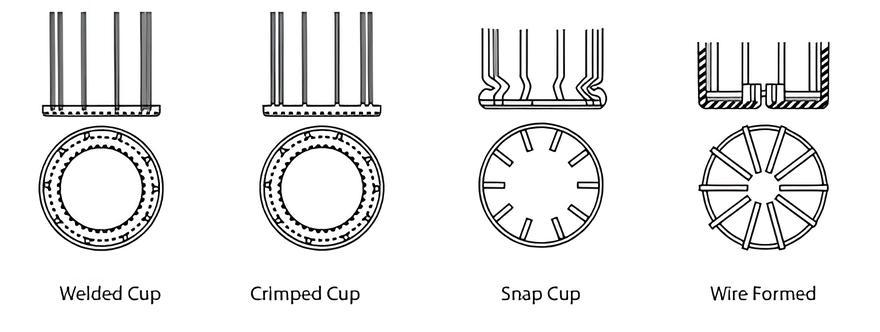

Cage Bottoms

Key Features

Available in round, oval, star, and envelope shapes
Material options: MS, galvanized steel, SS 304, SS 316
Single-piece or multi-piece construction with venturi
Custom wire diameter and spacing for airflow optimization
Various top configurations: All wire, split ring, or collar venturi

Filter Cages Specification

Parameter	Range / Details
Shape Options	Round, Oval, Star, Envelope
Material	Mild Steel, Galvanized Steel, Stainless Steel 304 / 316
Top Configuration	All Wire, Split Ring, Venturi Attached
Wire Diameter	2 mm to 5 mm (customizable)
Length Range	300 mm to 6000 mm
Surface Finish	Natural, Zinc Coated, Powder Coated, Epoxy Coated
Construction	Single-piece, Two-piece, or Multiple-section cages with couplers
Application Fit	Compatible with all pulse jet, reverse air, and mechanical shaker collectors

Applications of Filter Cages

Pulse jet and reverse air dust collectors
Cement kilns, steel plants, and power stations
Chemical processing and fertilizer plants
Pharmaceutical, food, and grain handling industries
Boiler baghouses and flue gas treatment units

⭐ Why Choose Filtech Textiles?

Accurate, deformation-free manufacturing using jigs and automated welding
Corrosion-resistant coatings: powder coating, epoxy, zinc plating
Customizable dimensions and collar designs for all baghouse models
In-house QA checks for weld strength, finish, and fit
Trusted by major cement, pharma, and energy clients nationwide
