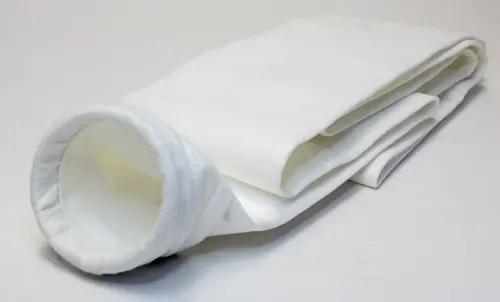

Pulse Jet Dust Collector Bags
Engineered for Efficient Dust Release and Longer Service Life in Pulse Jet Systems
Overview

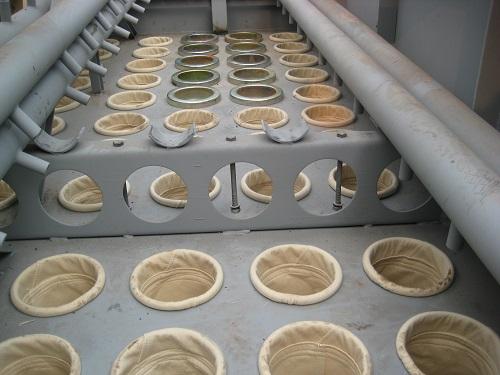

Pulse jet dust collector bags are specifically designed for high-performance reverse pulse jet baghouse systems. These bags endure repeated bursts of compressed air used to dislodge dust cake buildup on their surfaces. The design, media selection, and surface treatments all contribute to enhanced filtration efficiency and durability in harsh industrial environments. These filter bags are fabricated to maintain shape and dimensional stability during pulsing cycles and are available in a wide range of diameters, lengths, and configurations to suit various baghouse models.
Pulse Jet Baghouse Working Principle
Key Features
- Durable construction to withstand high-velocity pulse cleaning
- Media options: Polyester, Aramid (Nomex), PPS, Fiberglass, PTFE-coated, and blends
- Surface treatments: Glazing, singeing, calendaring, PTFE lamination, anti-static, oleophobic
- High collection efficiency (up to 99.9%) and low-pressure drop
- Operating temperature range: Up to 260°C depending on fabric type
- Snap band, ring, flange, or raw top with stitched, cuffed, or disc bottom options
- Designed to fit all major pulse jet baghouse models
Filter Media Specification for Pulse Jet Dust Collector Bags
| Parameter | Range / Details |
|---|---|
| Diameter Range | 100 mm to 300 mm (customizable) |
| Length Options | 1000 mm to 8000 mm (custom sizing available) |
| Media Types | Polyester, Aramid (Nomex), PPS, Fiberglass, PTFE-coated, Blends |
| Temperature Resistance | Up to 260°C (based on media) |
| Top Configurations | Snap Band, Flange, Raw, Corded |
| Bottom Configurations | Disc Bottom, Cuffed, Reinforced Bottoms |
| Surface Treatments | Singeing, Calendaring, Glazing, PTFE Membrane, Antistatic, Oil & Water Repellent |
| Filtration Efficiency | Up to 99.9% for sub-micron particulate |
| Standard Finishes | Triple-stitched seams, welded options (on request) |
| Compatibility | Suitable for all major pulse jet baghouse models and OEMs |
Applications of Pulse Jet Dust Collector Bags
- Cement kilns and clinker coolers
- Steel plants and electric arc furnaces
- Power generation (coal, biomass, and waste-to-energy plants)
- Asphalt production and mineral processing
- Food & grain handling (dust from flour, spices, etc.)
- Chemical and pharmaceutical powder systems
- Woodworking and MDF manufacturing units
⭐ Why Choose Filtech Textiles?
- Precision tailoring for optimal fit and filtration in pulse jet systems
- Advanced sewing and welding capabilities for leak-proof construction
- Large selection of high-performance filter media for various dust types
- On-site support and sample analysis for dust profile recommendations
- Trusted by top manufacturers in cement, power, and metal industries
- Fast lead times and consistent quality for OEM and replacement needs
