Fiberglass Filter Bags
Reliable High-Temperature Filtration for Demanding Industrial Processes
Overview

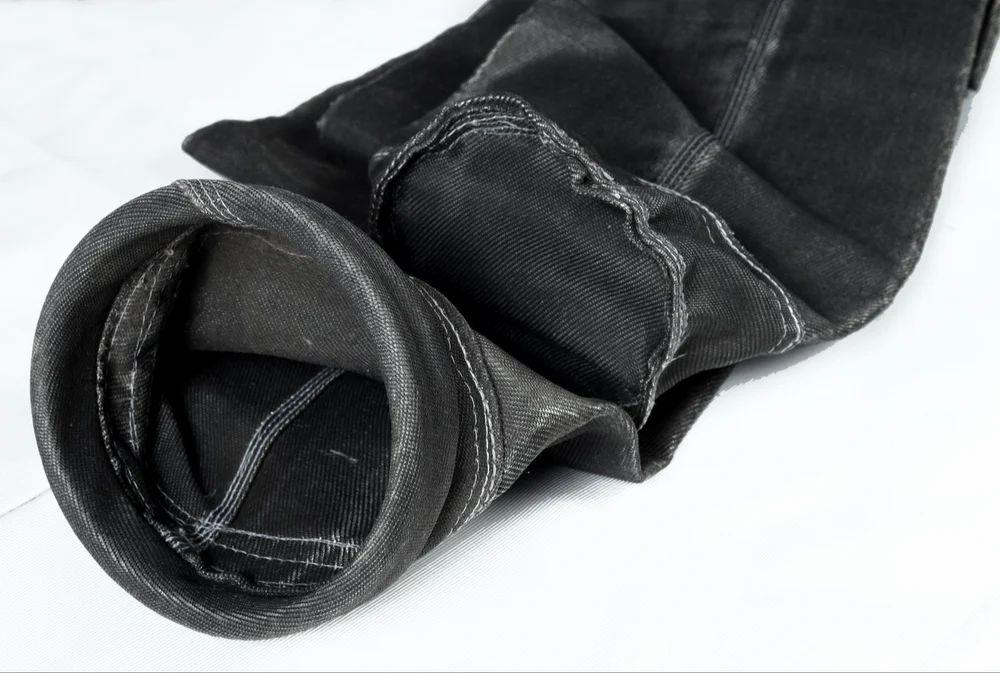

Fiberglass Filter Bags are designed for filtration in high-temperature and high-dust load environments where other materials fail. Constructed using woven fiberglass fabric with optional surface finishes, these bags offer excellent thermal stability, chemical resistance, and dimensional strength. They are commonly used in extreme industrial applications such as metal smelting, cement kilns, and power generation.
Key Features
- Temperature resistance up to 260°C (continuous) with peak tolerance up to 280°C
- High tensile strength and dimensional stability
- Good resistance to most acids and oxidizing agents
- Available with PTFE, silicone, graphite, or acid-resistant coatings
- Compatible with pulse jet, reverse air, and mechanical shaker systems
Filter Media Specification for Fiberglass Filter Bags
| Parameter | Range / Details |
|---|---|
| Temperature Resistance | Up to 260°C (continuous), 280°C (peak) |
| Fabric Type | Woven Fiberglass |
| Surface Finish Options | PTFE coating, Graphite, Silicone, Acid-resistant treatment |
| Weight Range | 500 – 750 GSM |
| Chemical Resistance | Excellent resistance to acids and oxidizing agents |
| Applications | Cement kilns, steel & foundries, boilers, incinerators |
| Bag Configurations | Snap band, raw top, ring top, bottom disc or sewn |
Applications of Fiberglass Filter Bags
- Cement kilns and clinker coolers
- Steel, foundry, and metallurgical operations
- Coal-fired and biomass boilers
- Non-ferrous smelting and refining
- Incineration of industrial and hazardous waste
⭐ Why Choose Filtech Textiles?
- Expertly tailored fiberglass bags for high-temp filtration systems
- Multiple surface finish options to improve cleaning and dust release
- Reinforced stitching with PTFE or Kevlar threads for durability
- Proven performance in cement plants, kilns, and power stations
- Rapid production and OEM support for industrial clients
